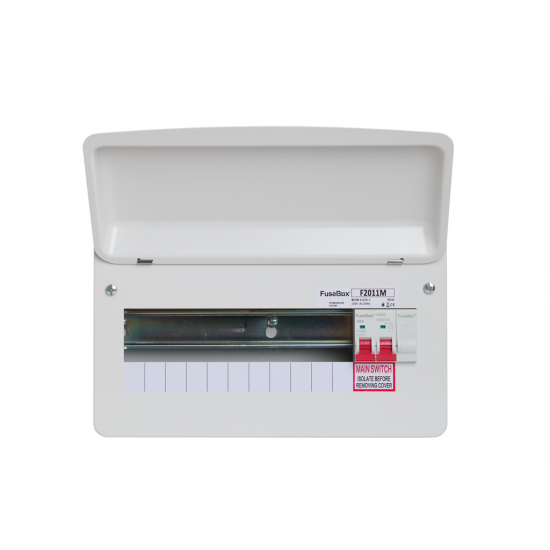

FuseBox F2011M Consumer Unit 11 Way 100A

Fusebox F2011M 11 Way Metal Consumer Unit with 100A Main Switch
F2011M

The Fusebox F2011M 11 usable way Consumer Unit is a cost effective and quality solution for any suitable application.

Features:

• Dimensions of F2011M are - H263 W306 D116 (mm)
• Earth and neutral terminal bars on top of consumer unit
• Removable and raised DIN rail
• Round knock-outs on all faces (20mm & 32mm top and bottom, 40m on sides)
• Extra height for RCBOs (standard and mini RCBOs available on our store)
• 1mm electro-galvanised steel (zinc)
• Busbar shroud
• RAL 9001 powder-coated arctic white finish to give a stylish look
• Tail clamp compatible (To be ordered separately ACCF)
• Circuit identification labels (Full label pack)
• Includes grommet strip
• Captive screws on front cover as standard for ease of installation
• IP20XC Rated
• BS EN61439-3 compliant
